Architectural Series- Steel
Architectural Series - Steel
Our steel doors are perfect for any application requiring visibility, natural light, strength and energy efficiency.
Models
Architectural Series - Steel
| Model | Section Thickness | Exterior Gauge | Section Design | Insulation | R-Value Solid | R-Value w/Glass | U-Factor Solid | U-Factor w/Glass | Max Width✭ | Max Height✭ |
|---|---|---|---|---|---|---|---|---|---|---|
| 3729 | 2" | 27 | Minor Ribbed | Polyurethane* | 18.4 | 8.0 | 0.19 | 0.39 | 20'2" | 18'0" |
| 3728 | 2" | 27 | Flush | Polyurethane* | 18.4 | 8.0 | 0.19 | 0.39 | 20'2" | 18'0" |
| 3709 | 1-3/8" | 27 | Minor Ribbed | Polyurethane* | 12.9 | 5.9 | 0.21 | 0.4 | 18'2" | 16'0" |
| 3708 | 1-3/8" | 27 | Flush | Polyurethane* | 12.9 | 5.9 | 0.21 | 0.4 | 18'2" | 16'0" |
| 3209 | 2" | 24 | Minor Ribbed | Polystyrene | 9.1 | 4.4 | 0.24 | 0.45 | 20'2" | 18'0" |
| 3208 | 2" | 24 | Flush | Polystyrene | 9.1 | 4.4 | 0.24 | 0.45 | 20'2" | 18'0" |
| 3159 | 1-3/8" | 27 | Minor Ribbed | Polystyrene | 6.5 | 3.4 | 0.3 | 0.44 | 18'2" | 16'0" |
| 3158 | 1-3/8" | 27 | Flush | Polystyrene | 6.5 | 3.4 | 0.3 | 0.44 | 18'2" | 16'0" |
Notes:
R-Values Solid calculated per DASMA TDS-163 on a solid door
R-values with Glass calculated per DASMA TDS-163 using weighted average with 3/4″ insulated glass.
Tested door U-factor is in accordance with DASMA 105
*Clopay’s proprietary polyurethane Intellicore insulation.
Doors are stucco embossed
All models contain thermal break
✭Maximum Width and Height values listed are Standard sizing.
Options
Architectural Series - Steel
*Available on select models.
±Finish will have smooth texture.
Custom powder coat and Color Blast® finishes available.
Premium finishing options include:
- Custom Colors with ColorBlast® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
Performance Options Available
Speciality Options Available
Carry-away, roll-away or swing-up mullions are available on select sizes.
The ControlGard® Chain Hoist features an integral braking system that only allows it to move when the user is actively pulling the chain, reducing the risk of expensive door damage and increasing the safety of users and those nearby.
Construction
Architectural Series - Steel
| Joint Design: | Tongue and groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Limited Warranty: | 10-year paint / 10-year delamination / 1 year material and workmanship / 1 year hardware |

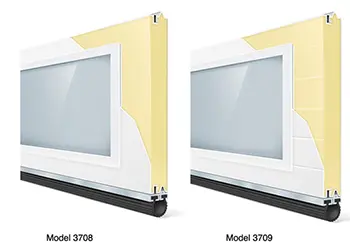

| Section Design/Emboss: | (3708) 1 3/8” thick stucco embossed steel with flush exterior skin pattern (3709) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern |
| Steel Gauge: | 27 exterior; 27 interior |

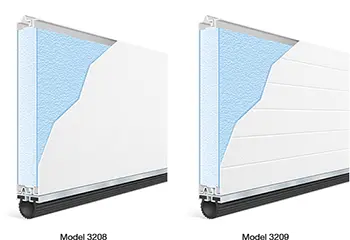

| Section Design/Emboss: | (3208) 2” thick stucco embossed steel with flush exterior skin pattern (3209) 2” thick stucco embossed steel with minor ribbed exterior skin pattern |
| Steel Gauge: | 24 exterior; 27 interior |

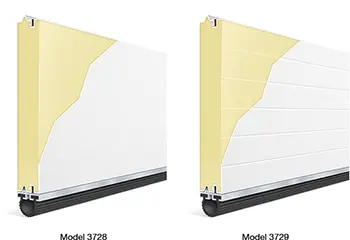

| Section Design/Emboss: | (3728) 2” thick stucco embossed steel with flush exterior skin pattern (3729) 2” thick stucco embossed steel with minor ribbed exterior skin pattern |
| Steel Gauge: | 27 exterior; 27 interior |

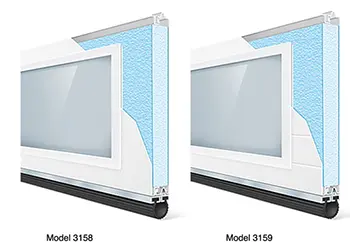

| Section Design/Emboss: | (3158) 1 3/8” thick stucco embossed steel with flush exterior skin pattern (3159) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern |
| Steel Gauge: | 27 exterior: 27 interior |
Specs/Drawings
| Model | BIM | Shop Drawing | Specs | Installation Manual | Warranty |
|---|---|---|---|---|---|
| Model 3159 | DOCX | ||||
| Model 3158 | PDF DXF DWG | RTF DOCX PDF | |||
| Model 3728 | DXF PDF | RTF PDF DOCX | |||
| Model EX3159 | RTF DOCX PDF | ||||
| Model 3709 | DXF PDF DWG | RTF PDF DOC | |||
| Model 3208 | DXF DWG | DOCX RTF PDF | |||
| Model 3209 | DWG DXF PDF | PDF RTF DOCX | |||
| Model 3708 | DXF PDF | DOCX PDF RTF | |||
| Model 3729 | PDF DXF DWG | RTF PDF DOCX | |||
Product Brochures
Product Brochures
Brochure 3158-3159
Brochure 3728-3729
Brochure 3208-3209
Brochure 3708-3709

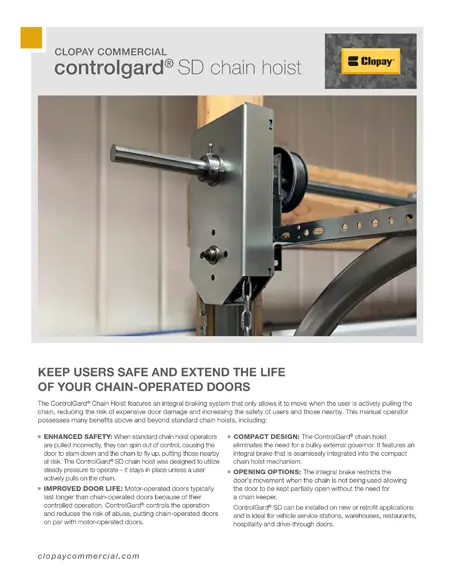

ControlGard® SD Chain Hoist Brochure
Brochure Commercial Idea Book
Springs/Hardware
Architectural Series - Steel
Commercial Hardware
Commercial door closures are manufactured with durable hardware to meet the demands of high-traffic environments. All of our doors include the standard hardware listed below. To view hardware upgrades, select the “Options” tab.
- 14-gauge hinges
- Commercial 10-ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for simplified operation
- Inside slide lock for improved security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications
Commercial and industrial buildings often need to meet code requirements and ADA standards for space. Avoid wear and tear on overhead doors and mitigate safety risks by providing your client with the best overhead door track for their application. Clopay track solutions include standard lift, low headroom with a front or rear mount, follow roof pitch lift, full vertical lift, and combination options.
Commercial Torsion Springs
Commercial and industrial overhead garage doors vary in size, design, and operation. Your torsion spring ensures that your door withstands the test of time and maintains peak performance. Clopay torsion spring options can be designed for the industry standard of 10,000 cycles or can be upgraded to 25,000, 50,000, or 100,000 expected life cycles.
