Architectural Series - Aluminum
Architectural Series - Aluminum
Our aluminum full-view doors offer a sleek design with fewer lines and angles providing an aesthetically pleasing appearance.
Models
Architectural Series – Aluminum
Clopay’s aluminum full-view doors are ideal for commercial buildings requiring visibility, access to natural lighting and a modern look. They’re a great choice for applications ranging from restaurants and fire stations to car dealerships. These overhead doors come with an aluminum frame construction and also come in solid aluminum if privacy is preferred. You can also customize your door with a wide variety of window, color, design and performance options.
| Model | Thickness | Spacing | R-Value | U-Factor | Max Width* | Max Height* |
|---|---|---|---|---|---|---|
| 904 | 2-1/8″ | Equal width & spacing | – | – | 24’2″ | 20’0″ |
| 904U*** | 2-1/8″ | Equal width & spacing | 3.8** | 0.73 | 20’2″ | 20’0″ |
| 906 | 2-1/8″ | Minimal stiles | – | – | 22’2″ | 16’0″ |
| 906U*** | 2-1/8″ | Minimal stiles | – | – | 20’2″ | 16’0″ |
*Maximum Width and Height values listed are Standard sizing.
**With insulated low-e argon filled glass
***With Clopay’s proprietary polyurethane Intellicore insulation.
Tested door U-factor is in accordance with DASMA 105
Options
Glass Panel Options
Glazing Material Options (904/904U)
*Mirrored and laminate not available in 1/2″
Glass options above only available on full-view sections. Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polygal thickness available in 5/8″. Low-E available on insulated glass.
**Available in 904W8/904UW8 only
+Only available on doors equipped with C-Power® technology. Glass available in insulated tempered or laminated.
Glazing Material Options (906/906U)
*Acrylic thickness is 1/8″, black only available in 1/4″ thickness.
Hardcoated Acrylic options available
Low E glass available
Glass thickness available in 1/8″, 1/4″ and 1/2″
Glazing Material Options (906/906U)
Constructions
Sizes
Standard construction up to 30′ wide, 30′ high
Usage
The doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50,000 cycles for the lifetime of the door.
Standard Materials and Finishes
Galvanized Steel
20 gauge 300 series stainless steel
- #4 finish
- Structural stainless
316 Stainless Steel in #4 finish
#16 B&S gauge aluminum
- Mill, clear or color anodized finish
Brochures
Product Brochures

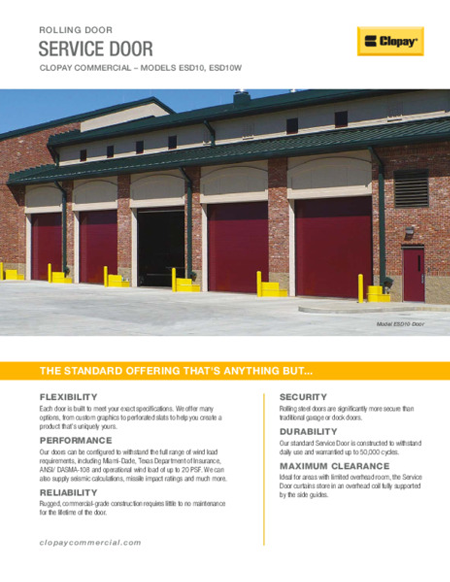

Service Door Feature Sheet

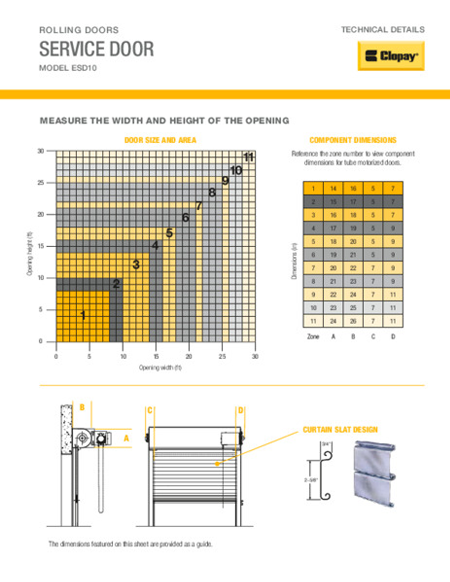

Service Door Technical Details Sheet
Rolling Doors & Shutters Health Product Declaration
Insulated Rolling Doors Health Product Declaration

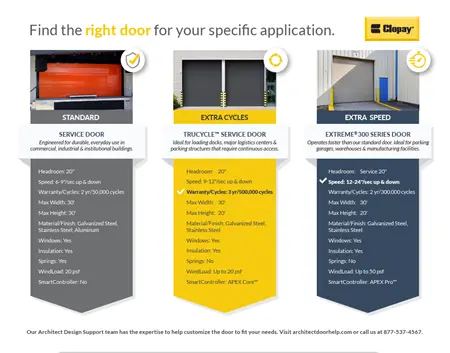

Find the Right Door Comparison

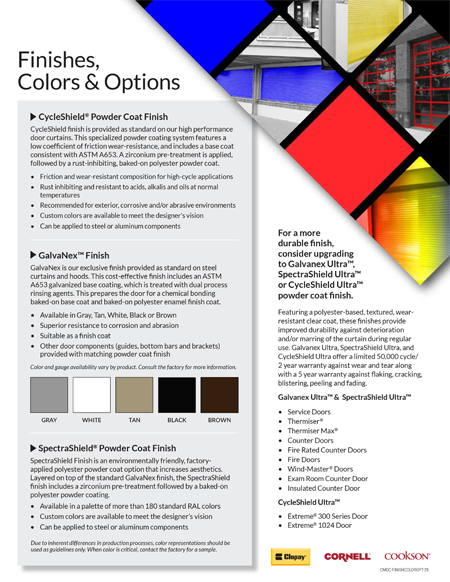

Finishes, Colors & Options
